#57 Limestone for Missouri Drainage, Soft Spots and Concrete Work

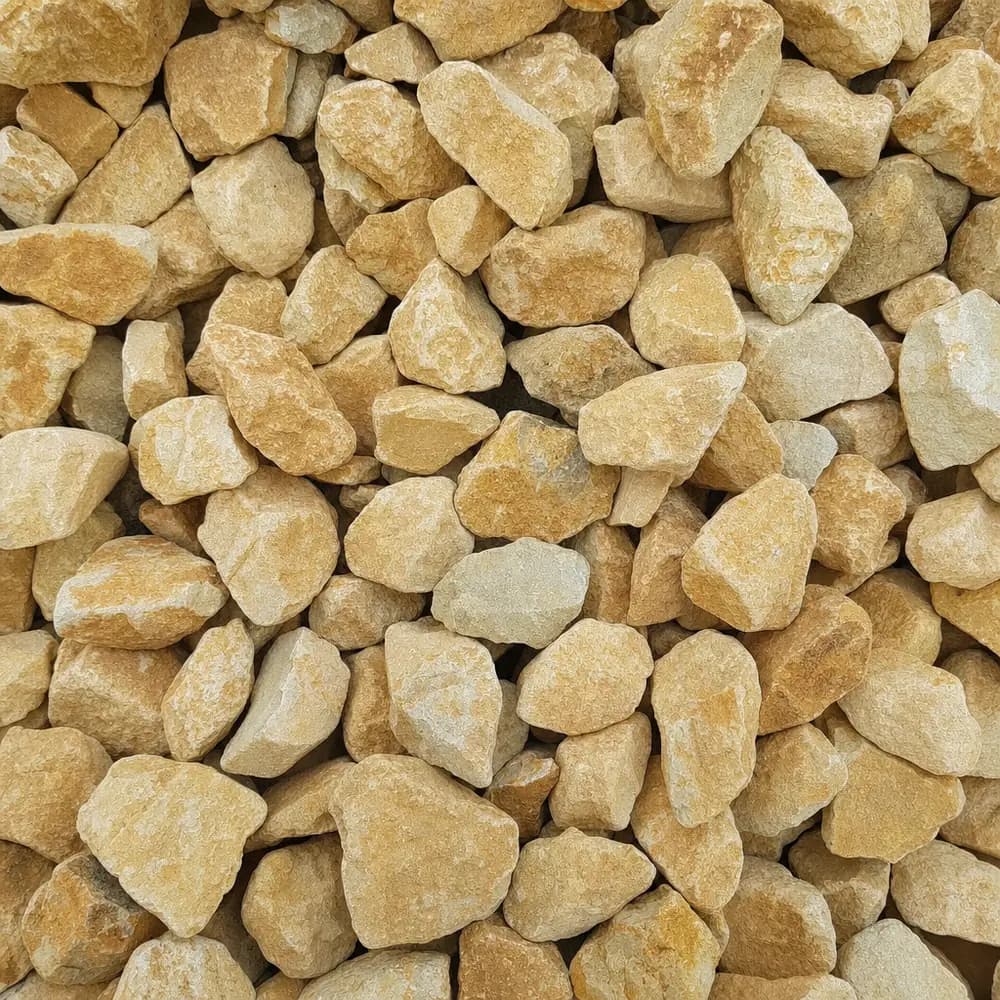

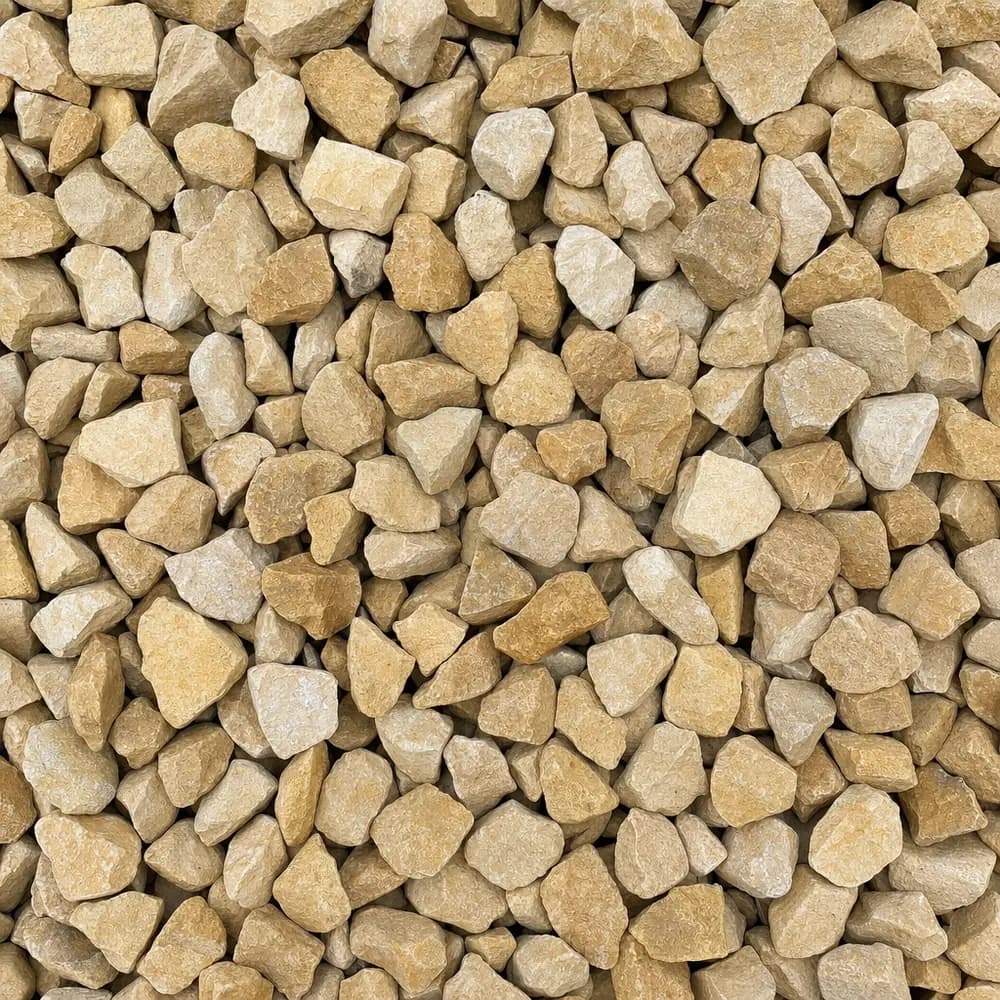

Every wet March somebody tips a load of clean rock into the stretch of lane where the pickup has started leaving ruts, drives over it twice, and watches it disappear into the mud. The stone has not failed. It was asked to do a job it cannot do on its own. What ships from this page is #57 Limestone, the washed 3/16 inch to 1 inch angular grade that Missouri quarries sell as 1 inch clean, and understanding why it sinks into saturated claypan is the same as understanding why it works so well buried in a trench.

The muddy stretch of lane a load of clean rock is bought to cure

Washed stone has no fines in it at all. Nothing binds one piece to the next, so a layer of it sits as a loose mat of stone that carries weight only as long as it has something firm to bear on. Drop it straight onto soft, wet ground and every wheel presses individual stones down into the soil while the soil squeezes up between them. Inside a season it is gone from sight and the rut is back.

The fix is not more stone. Put a geotextile separation fabric down first so the subgrade and the stone cannot swap places, then build a lift thick enough to bridge, and accept that a soft spot which stays wet all winter is a drainage problem wearing a rock costume. On a lane, the layer that carries traffic long term is a binding blend such as Base Rock, with the clean stone underneath doing the bridging and the draining.

When to order #57 Limestone on karst, claypan and river-bottom ground

Buried, this material is excellent, because the angular faces of a single-size washed grade leave open voids that water travels through quickly. Three Missouri situations put it to work.

On the Ozark plateau, with its cherty soil over limestone and dolomite, water often wants to go down rather than across, and sinkholes and springs are part of the picture. Here the stone gives concentrated flow a controlled route to an outlet you chose rather than one the ground chose.

On the northern prairies and the claypan flats, water perches on the clay subsoil and has nowhere to go from late fall into spring. A curtain drain or a foundation drain packed with clean rock gives it that route, and the same logic applies behind a retaining wall, where the open stone keeps pressure off the back of the block.

In the Bootheel and the river bottoms, the ground is flat and the water leaves slowly through ditches and channels. Bedding and trench work there is about keeping a line open in silt-heavy soil, which is a fabric question as much as a stone question. It is also the standard washed aggregate for concrete, so if a mix design calls for a #57, this is the grade.

Where it disappoints: garden paths and freshly seeded lawns

A garden path built from this stone is uncomfortable to walk on and always will be. Pieces from 3/16 inch up to an inch, with nothing filling the gaps, roll under a boot, catch a mower wheel and refuse to pack down into a surface. A path wants Walkway Gravel or Screenings, both of which carry the fine material that makes a surface firm.

New lawn prep is the other one. It is stone, not soil, and tilling it into a seedbed leaves you with a lawn that dries out in July and a mower blade that finds rock. Where it does belong on a lawn job is out of sight: in the drain line that runs under the new grade, laid and fabric-wrapped before Top Soil goes over the top.

Bridging lift or drainage fill, and what sits under each

It helps to decide which of the two jobs you are buying it for, because the preparation differs.

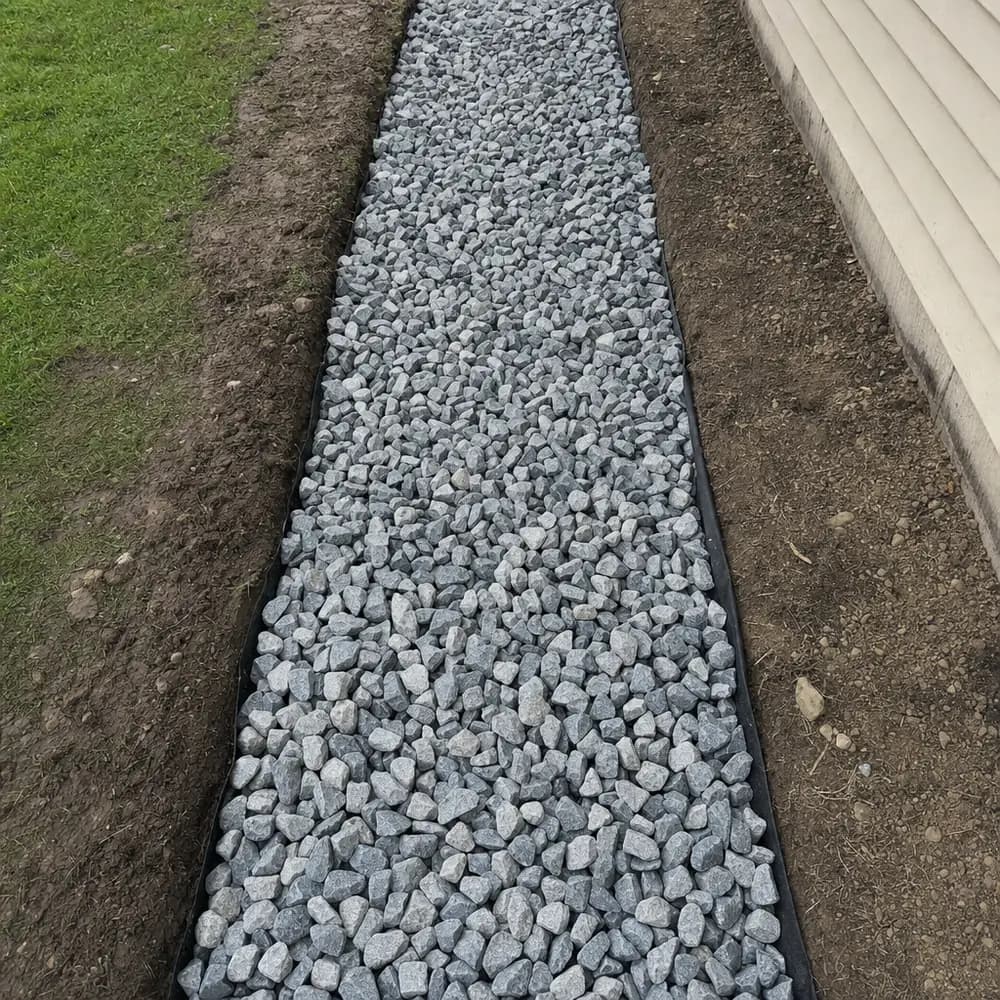

As drainage fill, in a trench, behind a wall, around a perforated pipe or in a septic field, it is fully enclosed. Fabric goes against the soil on all sides with a generous overlap at the top, the stone goes in around the pipe, and nothing is compacted. The voids are the product.

As a bridging lift under a lane, a pad or a construction entrance, it is structural and temporary. It sits on fabric, gets a binding course on top of it, and ends up carrying load rather than carrying water. What it is not, in either case, is the finished surface. You can drive on it, but loose washed stone migrates toward the edges, throws off a tire and never firms up.

Counting the yards for 90 feet of soft lane and a drain line

Say a long rural lane has a 90 foot stretch that goes soft each spring, ten feet wide, and you want a six inch bridging lift over fabric. That is 90 x 10 x 6/12, or 450 cubic feet, and 450 divided by 27 is 16.7 cubic yards.

The drain line taking water off the new lawn beside it, 50 feet long, a foot wide and a foot deep, is 50 x 1 x 1, or 50 cubic feet, which is 1.9 cubic yards.

This site publishes about 2,800 lb per cubic yard for the #57 and 3/4 inch crushed stone family, roughly 1.40 tons to the yard and approximate, so the bridging lift works out at 16.7 x 1.40, near 23.4 tons, and the drain line at 1.9 x 1.40, about 2.7 tons.

Stone ships by the ton, so put those cubic yards through the stone calculator to get the order weight, and leave the five percent extra ticked for the trench, because trench walls never stay as square as the tape says. Then choose your quantity and a date on this page.
