#8 Crushed Stone for Missouri Pipe Beds and Permeable Paving

Trench work in this state runs on a narrow window. Frozen ground stops a spade in January, claypan up north slumps the sides of a fresh cut through April, and a flat yard in the northeast can stay too wet to hold a clean trench wall into early June. In the Ozarks the limit is different again: chert and rock slow the digging more than mud ever does, so the window opens earlier and the work is harder. Either way, the stone wants to be on site before the cut is made rather than after, because #8 crushed stone earns nothing sitting in a heap and a great deal sitting around a pipe.

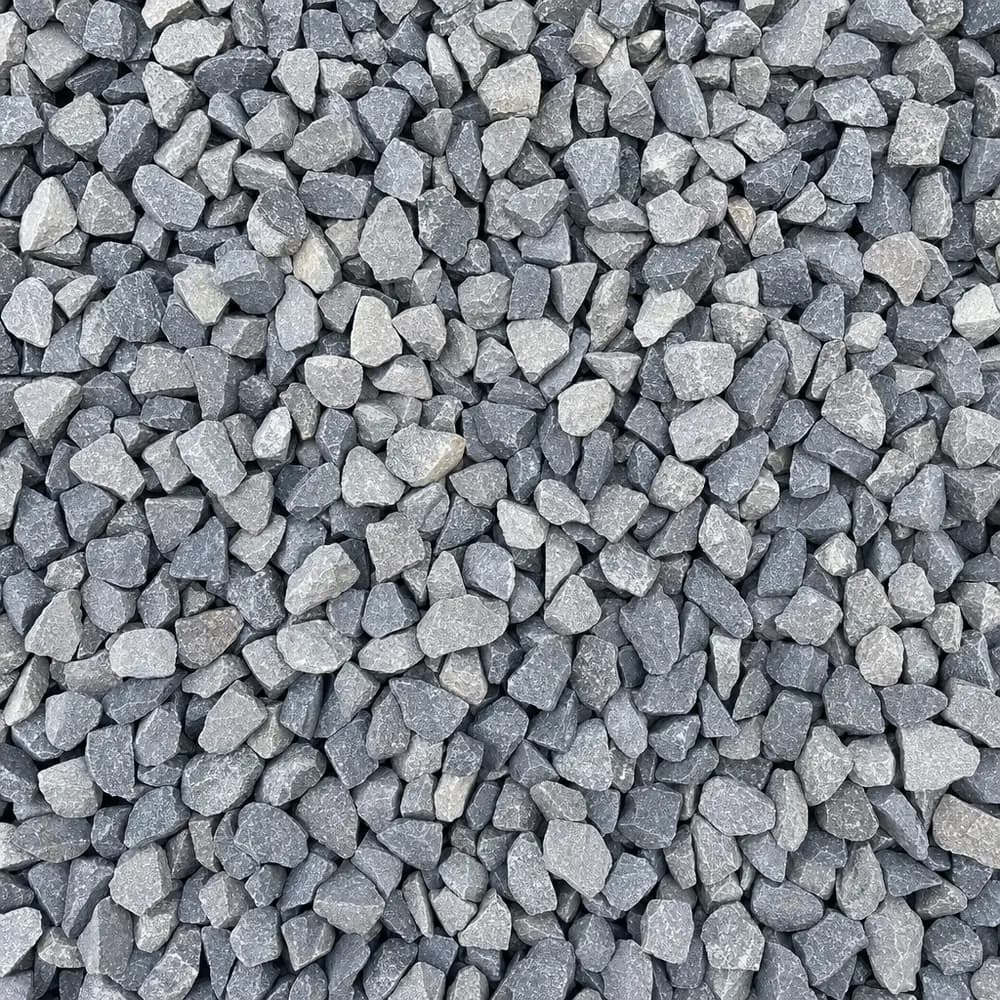

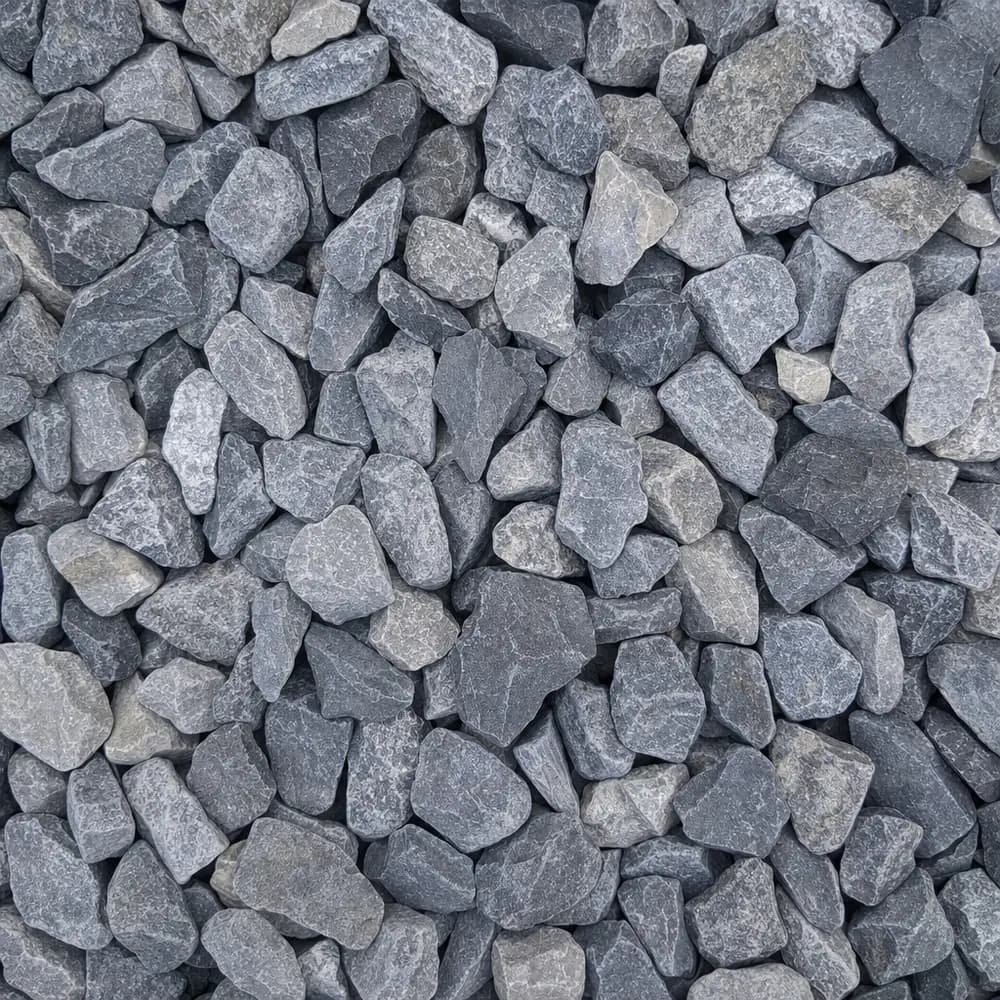

A fraction of an inch of dust separates #8 crushed stone from #89

The two grades sit next to each other on the order form and look near enough identical tipped out on a tarp. Both run about three eighths of an inch. The difference is what is not in the load. This grade is clean, with little to no fines in it, and the one beside it carries fines all the way down.

That single fact sends them to opposite ends of a job. A clean stone keeps open space between the pieces, so water moves through it and it never knits into a firm surface. A stone with fines packs down tight under a tamper and holds a shape, which is why #89 Crushed Stone belongs in paver joints and under flagstone and this one does not.

Step up in size and you reach 1 inch clean, sold here as #57 Limestone, which drains harder and shovels rougher. Step sideways and 3/8" Crushed Stone gives you an angular finish layer that tightens up underfoot. Order by what the layer has to do, not by the number, because the numbers are close enough to trip anyone.

Around a foundation line on a hillside lot above Springfield

A house cut into a hillside over limestone gets water arriving sideways, not just from above, and the perimeter line has to stay open for years to be worth digging. That is the work this grade suits best.

Fabric first, laid up the sides of the trench with enough left over to fold across the top. Two to three inches of stone in the bottom to set the pipe on, so the line sits true and not on a lump of chert. Pipe down, holes to the underside. Then stone up and around until there is six inches or more over the crown, fabric folded closed, and cover on top.

The reason the stone is washed is that a buried drain fails from the inside. Dust and crusher fines wash down into the voids with the first heavy rain and cement themselves into the gaps. A clean load gives the run its best chance of still flowing in five years.

Batching concrete in a wheelbarrow at the far end of a farm lane

Small pours on a hobby farm rarely justify a truck. A feed slab, a pump house floor, a set of post footings past the point a mixer can reach: those get batched by hand, and this is the size that behaves in a small mix.

Even, small, angular pieces distribute through a wheelbarrow load without the segregation you get from a coarser stone, and the clean gradation matters for a different reason here. Dust coating the stone sits between the aggregate and the cement paste. Less of it means the paste grips the rock rather than the film on it.

For a pour that has to carry anything real, get the mix design from whoever is specifying the work. What this page can say is that the stone size is suited to a small coarse aggregate and that the load arrives washed.

The culvert outlet and the low corner both want something heavier

Two jobs come up on nearly every call about small stone, and neither one belongs here.

A culvert outlet on a gravel county road takes the full force of a hollow emptying after a thunderstorm. Stone this size leaves in the first storm and turns up forty feet downstream. That apron wants RipRap keyed into the bank, sized against the flow it has to stand.

A low corner of a yard that ponds every spring is not a stone problem at all. Filling it with washed rock buries the problem and leaves you with a wet corner full of expensive gravel. Raise the grade with Fill Dirt, compact it in lifts, cap it with soil, and put the stone only where water is meant to travel.

Bedding depth around a 4 inch line, quoted loose

Nothing here compacts, so every depth on this page is the loose depth you measure with a tape after raking, and it is close to the depth you end up with. Expect the layer to settle a small amount into the trench bottom during the first wet spell and then stop.

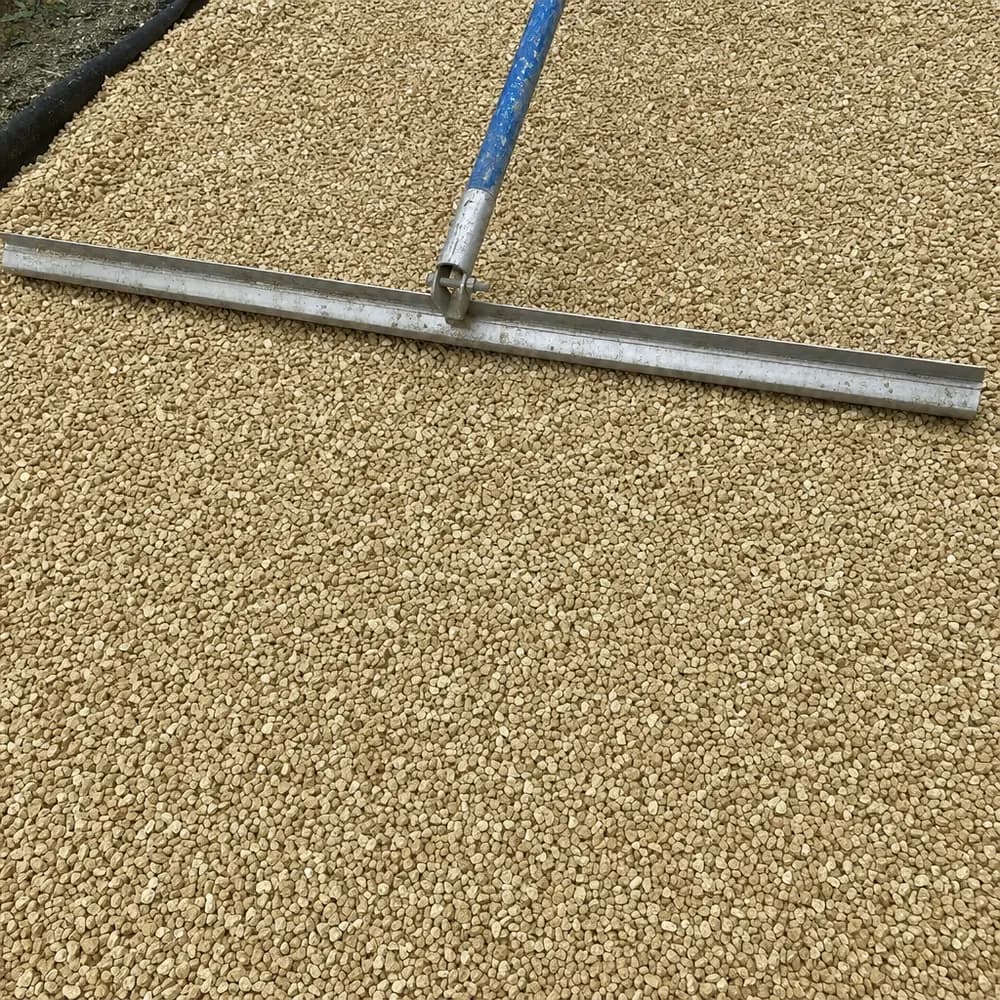

Two to three inches under a pipe is enough to level it. Six inches of cover over the crown is a common figure and more is better where anything will drive over the line. In a permeable paver build the bedding course is the thickness the paver system calls for, not a number invented on site, so take it from whoever supplied the units.

Tons for 60 feet of perimeter drain and a 40 foot utility run

Two hypothetical jobs, worked through.

A perimeter drain 60 feet long, trenched 18 inches wide, with 12 inches of stone in it: 60 x 1.5 x 1.0 gives 90 cubic feet. A 4 inch pipe running the length takes up about 5 cubic feet of that, leaving 85. Divide by 27 and that is 3.1 cubic yards. This site publishes about 2,800 lb per cubic yard for the #89, #8 and 3/8 inch chip family, roughly 1.40 tons to the yard, and it is an approximate figure, so 3.1 x 1.40 works out near 4.4 tons.

A 40 foot utility trench a foot wide with 6 inches of stone: 40 x 1 x 0.5 is 20 cubic feet, 0.74 cubic yards, about one ton.

Run your own shapes through the stone calculator, which carries depth guides and a five percent allowance for uneven ground that is on by default. Once the trench is open and the yardage looks right, set a quantity and a delivery date here on the product page.

Keeping a clean stone clean between the drop and the trench

The value of this load is the empty space in it, and that is easy to lose on the day. A pile tipped onto bare clay picks up mud on the bottom two inches, and a wheelbarrow that has been scooping the wrong part of the heap carries that straight into the drain.

Tip it on a hard surface if there is one, or on a sheet of plywood or an old tarp if there is not. Keep it clear of a pile of trench spoil, which is the usual source of the dirt. Missouri Rock Supply arranges delivery at checkout from your ZIP code, and the truck needs clear access to somewhere it can tip, so if the only route to the back of the property crosses soft ground it is worth raising through the contact page before the day.
