RipRap for Missouri Creek Banks, Pond Dams and Culvert Outlets

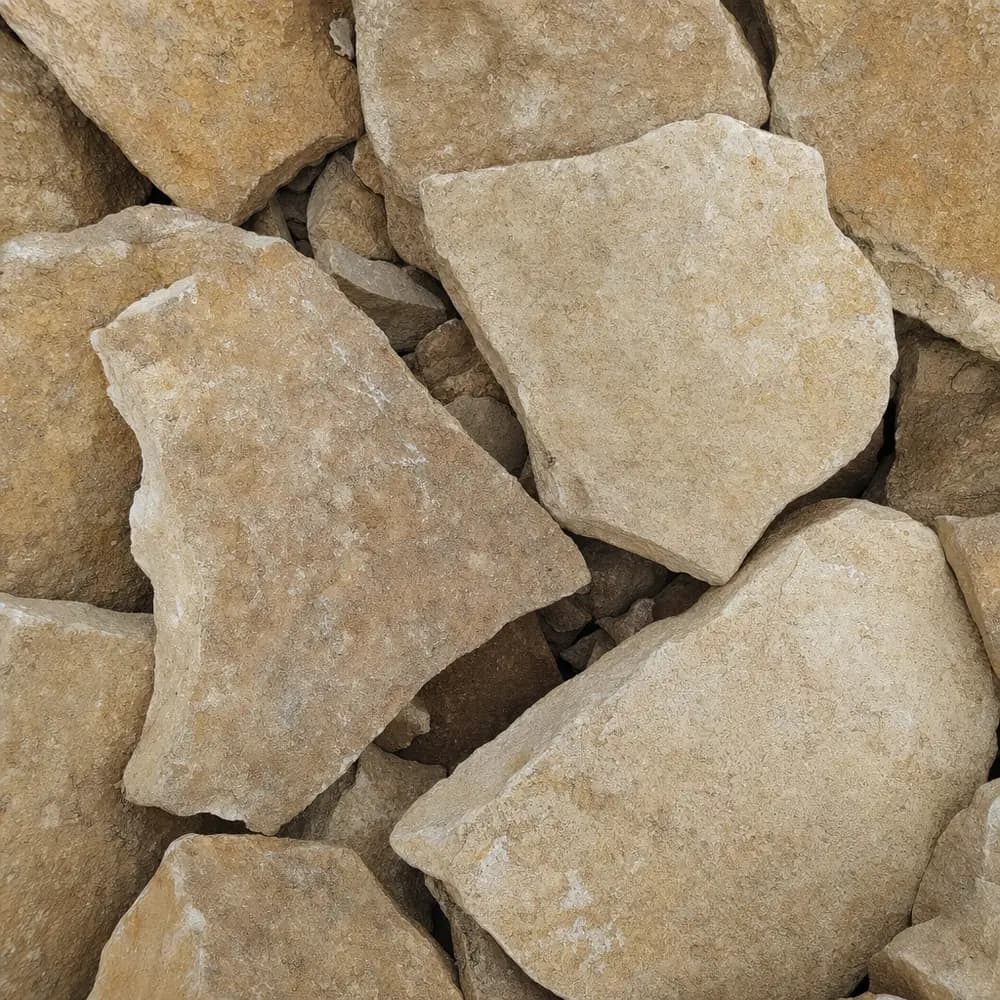

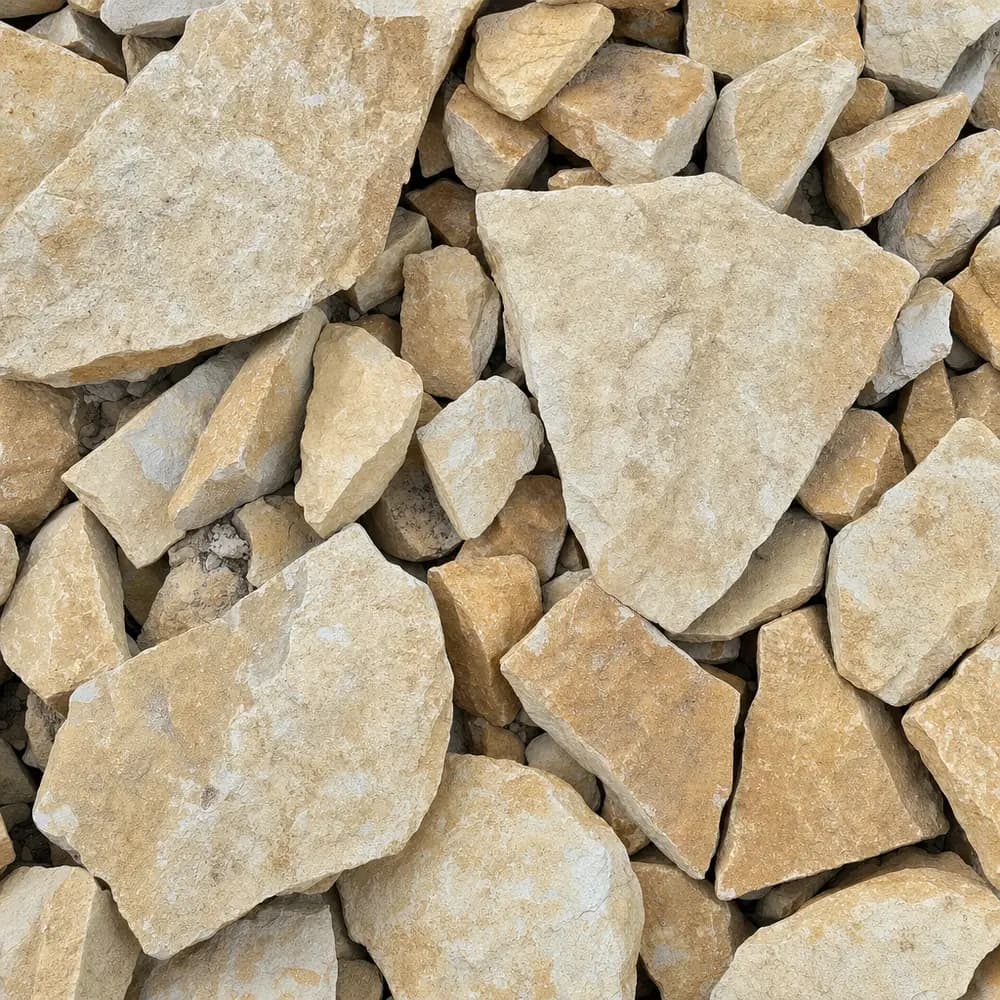

After a thunderstorm drops a couple of inches in an hour, the creek behind the place comes up fast and drops just as fast, and the decision waiting for you the next morning is not really which rock to buy. It is whether to go on patching the same bank with gravel every spring or to armor it once. RipRap is the second answer: large, heavy stone running from four inches up through twelve inches and larger, sized so that moving water spends its energy on rock instead of on your ground.

The pond dam that loses a foot of face every wet spring

Most orders trace back to one of three failures, and all three are the same failure wearing different clothes. A farm pond dam face gets chewed back by wave action and by the rise and fall of the water through a wet spring. A culvert outlet on a rural lane discharges at speed, lands on bare soil, and excavates a hole that works its way back under the pipe. A creek bank on the outside of a bend loses a slice of ground every high water, taking fence line with it.

In each case the ground is being asked to resist moving water and cannot. Gravel does not solve it, because a Missouri storm that sends fast runoff down a hollow moves gravel as easily as it moves soil. What changes the outcome is individual stones heavy enough that the flow cannot pick them up.

Keep the stone on the water's actual path. Spreading it thinly across a whole slope looks like a day's work and protects nothing.

How heavy stone sits on chert, loess and Bootheel silt

Three Missouri ground types fail underneath armor in three different ways, and all three are fixed below the stone rather than on top of it.

On loess, the fine wind-laid silt on the bluffs and ridgetops above the big river bottoms, the soil erodes very easily and washes out from between and beneath the pieces. That is a filter problem. On the claypan and heavy clay of the northern prairies and the Bootheel lowlands, saturated clay softens and the stone presses into it while the clay squeezes up through the gaps, which loses the interlock. On cherty Ozark ground you generally have a firm bottom, but the surface is uneven and rocky, so stones bed on their high points and rock underfoot until they are set properly.

The answer in all three is a separation layer. A geotextile against the soil, or a bedding course of smaller angular stone such as #4 Crushed Stone, keeps soil where it is while still letting water through. Near the big rivers, where water can stand against a bank for days during a long high-water spell, the filter matters more than the stone size does.

Keying the toe in, then working up the bank

Start at the bottom. Cut a trench at the toe of the bank, below the level the water normally reaches, and set your largest pieces into it. An undercut toe brings everything above it down, so this step does more for the finished job than anything else you do.

From there work upward, placing rather than tipping. Turn each stone so its flattest face beds down and its edges key against its neighbors, and drop smaller pieces into the gaps as you go. A placed layer resists being picked apart at the edges. A dumped one unravels from the first loose stone the water finds.

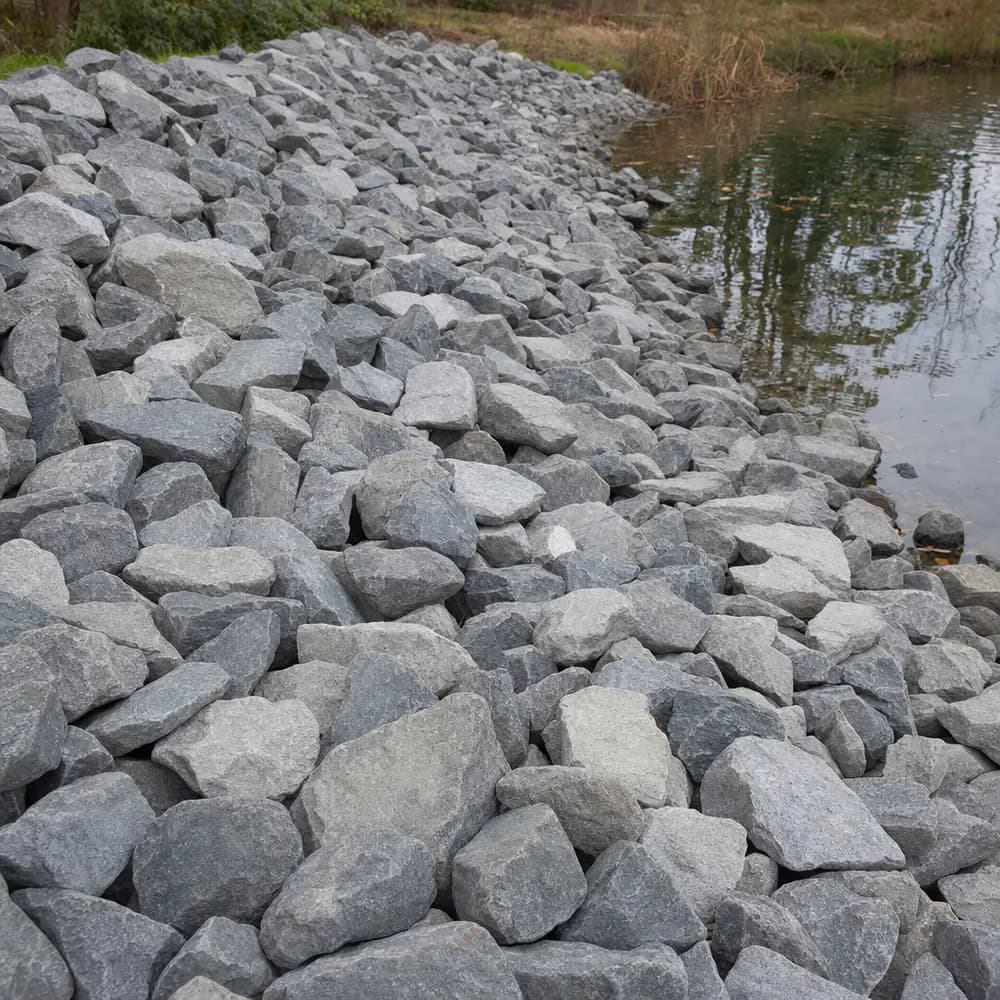

Finish the top and side edges into undisturbed ground, or bury them slightly, so flowing water cannot get behind the armor and run along its back. On a pond dam, carry the stone above the highest water line you have actually seen, not the normal one.

What to look at after the first high water

Walk it once the water has gone down, and look at edges rather than the middle. The three things worth checking are whether the toe is still buried, whether any stone has shifted or turned, and whether soil is appearing between the pieces, which means the filter underneath has been beaten.

Small movement in the first season is normal as the layer settles into itself. A stone missing from the top edge is not, and is worth replacing before the next storm widens the gap. Otherwise this is a material you leave alone. Grass and volunteer growth coming up through it is fine and helps hold the surface.

Measuring a dam face and a culvert apron for riprap

Measure the slope face, not the ground plan, because a bank is longer up its slope than it looks from above.

A pond dam face 70 feet long, with nine feet from toe to top and an 18 inch layer, is 70 x 9, or 630 square feet. At 1.5 feet thick that is 945 cubic feet, and 945 divided by 27 is 35 cubic yards.

The culvert apron below it, 12 feet by 10 at the same thickness, is 120 square feet, which at 1.5 feet is 180 cubic feet, or 6.7 cubic yards.

This site publishes about 3,100 lb per cubic yard for rip rap, roughly 1.55 tons to the yard and approximate, so the dam face runs 35 x 1.55, near 54 tons, and the apron 6.7 x 1.55, about 10.4 tons.

Stone ships by the ton, so put those cubic yards through the rip rap calculator to get a weight. Choose a quantity and a date here once you have it, and if the only approach is a farm track or a low-water crossing, say so through the contact page before the load is booked. Delivery is arranged at checkout from your ZIP code, and a heavy load needs a firm, reachable place to tip.

Three jobs it gets ordered for and should not

A hot tub pad needs a flat, compacted, load-spreading base, and four to twelve inch rock will never be any of those things. That is a job for Crusher Run compacted in lifts.

A side-yard dog run made of this stone is hard on paws, impossible to sweep or rinse clean, and awkward to walk. Something fine and walkable such as Walkway Gravel is the right call.

A turnaround or parking pad wants material that compacts into one dense layer. Heavy rock stays as loose individual pieces, moves under a tire, and makes a surface nobody enjoys crossing. Build that on Base Rock with a surfacing course over it.
